INSTALLATION

DYNAMIC SPLICE TESTING - DIN 22110, Part 1 & 2
	This 6-pulley-machine is used for testing the dynamic splice strength of textile conveyor belts under pulsating load.

DYNAMIC SPLICE TESTING - DIN 22110, Part 3

	This is the standard test machine, with which the major top-strength conveyor belts worldwide have been certified.

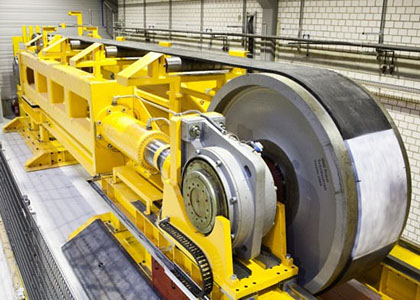

MEGAPULSER DYNAMIC SPLICE TESTER
	The oscillating "Megapulser" can test splices of up to 2500 kN. The belt length is 17 m.
