ENERGY SAVING CONVEYOR BELTS

A conveyor belt is deformed when running over the idlers. This consumes energy.
Special rubber compounds and belt designs - for instance an additional transverse reinforcement - reduce the indentation and let the belt run easier over the idlers.
Such belt types, on long distance conveyors, can save a lot of money.

They are known as EOB, XLL or LRR conveyor belts.

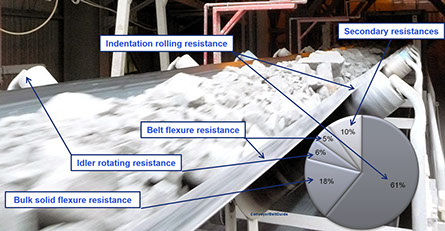

The illustration shows the motion resistances on a 1 km long horizontal conveyor as found by Hintz. The indentation rolling resistance of the conveyor belt, >60%, has by far the highest share.

For the determination of the energy saving properties of a conveyor belt, a standard test has been implemented at the ITA, University Hanover.

The test parameters - temperature, idler diameter, pressure - can be adjusted.

The illustration and the animation on the right side show the principle.

POWER CONSUMPTION
	f = 0,020	f = 0,015	Difference
Horizontal conveyor	147 kW	110 kW	37 kW	8 %
10 % inclined conveyor	449 kW	412 kW	37 kW	23 %
10 % declined conveyor	-127 kW	-157 kW	30 kW	23 %
